Technaxx Reverse Parking Assistance with 4 sensors & LED display TX-109
Technaxx Reverse Parking Assistance with 4 sensors & LED display TX-109

UVP: 29,99 EUR

EAN: 4260358122373

SKU: 4775

Wired optical and acoustic reverse parking system

Features:

  • Suitable for most vehicles as assistance for reverse parking
  • 4 ultrasonic sensors (40kHz)
  • Digital dashboard display
  • Optical & acoustically rising warning (> 80dB)
  • Measuring range 0.3m~2.0m in 0.1m steps
  • Power supply DC 12V of the sensors by connection to the reverse light
  • Sensor protection class IP68 (dustproof & waterproof)
  • Complete installation set

    Technical specifications:
  • Detection angle: horizontal & vertical 90°±15°
  • Distance alarm tone: rear sensors 0.3m~1.5m
  • Display distance: rear sensors 0.3m~2.0m
  • Operating voltage: DC 12V / Range: DC 10V~16V
  • Operating power: 6W maximum
  • Operating temperature: –40°C up to 80°C

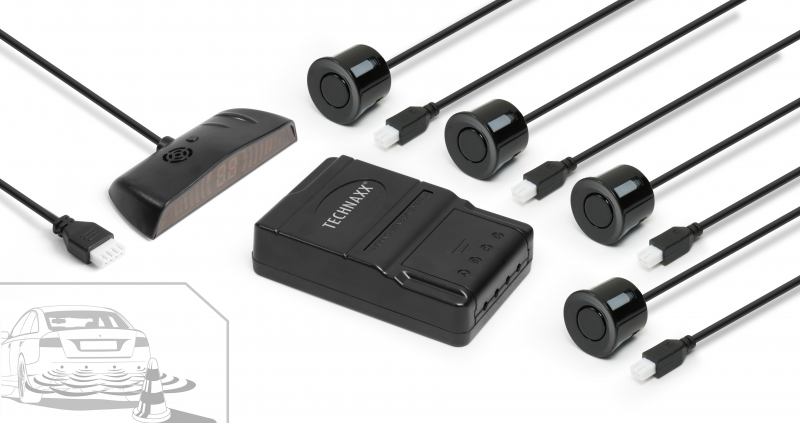

    Package contents:
  • Reverse Parking Assistance TX-109
  • 4x Rear sensors
  • 1x Display
  • Power cable
  • Hole saw (22mm)
  • 1x 3M sticker
  • User Manual

    Weight and Dimensions:

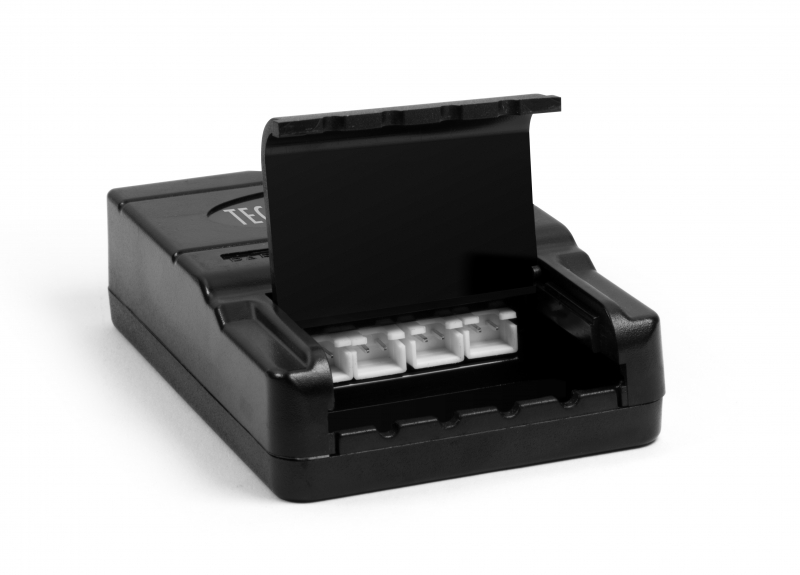

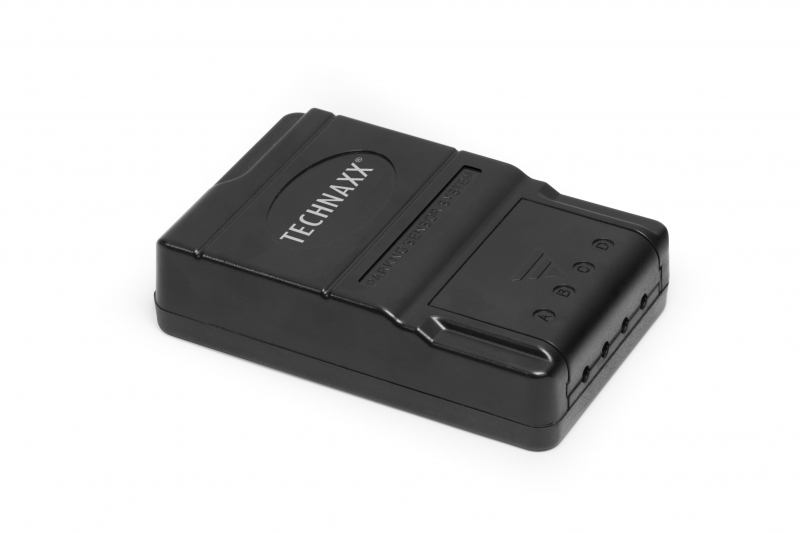

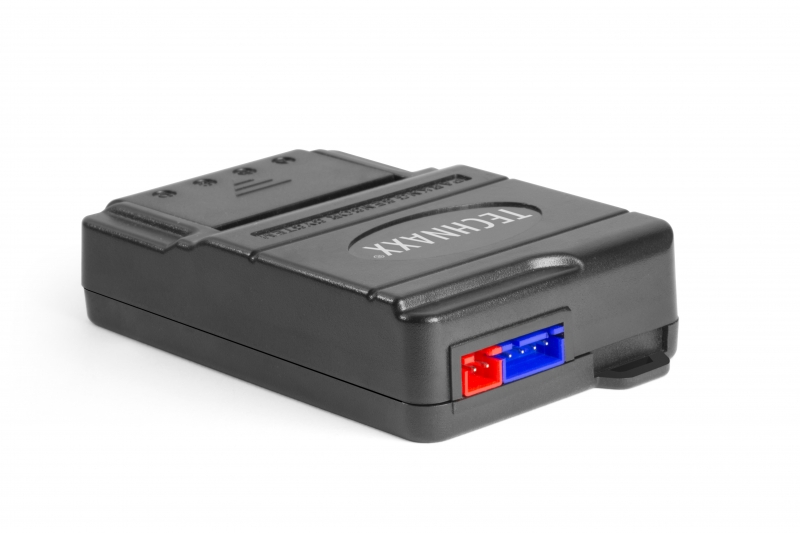

  • Weight/Dimensions control box: 48g / (L) 8.3 x (W) 5.35 x (H) 1.9cm

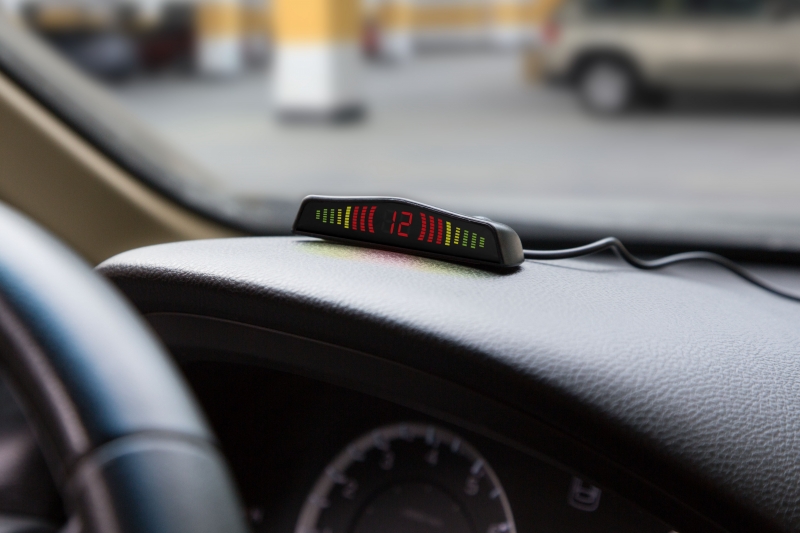

  • Weight/Dimensions LED display: 81g / (L) 7.55 x (W) 2.85 x (H) 1.2cm / cable length 4.94m

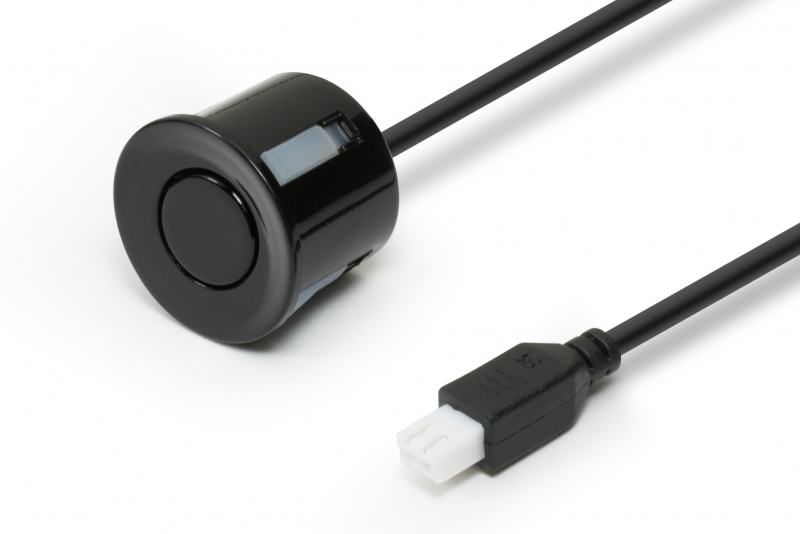

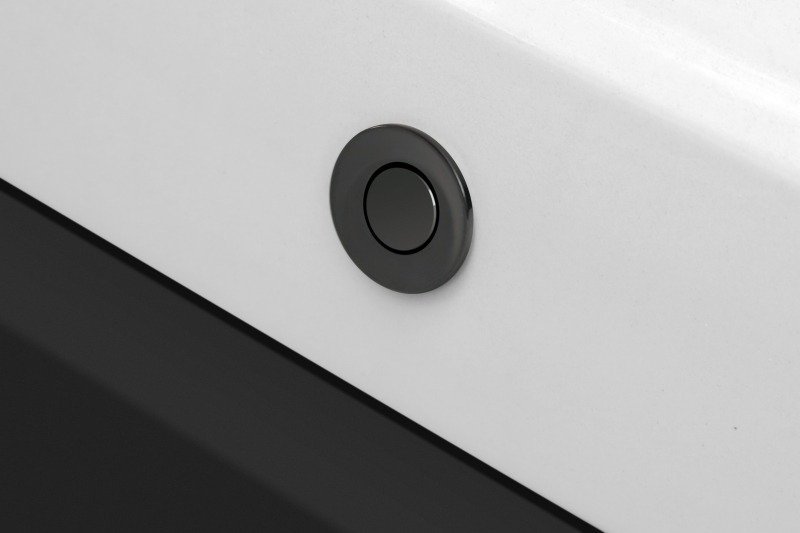

  • Weight/Dimensions one sensor: 39g / (L) 19.5 x (inner Ø) 22mm (outer Ø) 25mm / (L) cable 2.50m
