Technaxx Wireless Video Door Phone TX-59+
Technaxx Wireless Video Door Phone TX-59+

UVP: 249,00 EUR

EAN: 4260358123059

SKU: 4770

Wireless Video Door Phone TX-59+

  • Wireless outdoor camera for the entrance door with 7" TFT LCD indoor monitor

    Product Highlights:
  • Show up to 2 outdoor cameras on 1 indoor monitor
  • Show 1 outdoor camera on up to 3 indoor monitors
  • Supports communication between 2 or 3 indoor monitors
  • Video & Photo recording function
  • IP55 camera protection class (against waterjet & dust)
  • Motion Detection ~3m
  • Infrared night vision ~1.5m with 2x IR LED
  • Wireless transmission ~200m open areas
  • Camera is adjustable

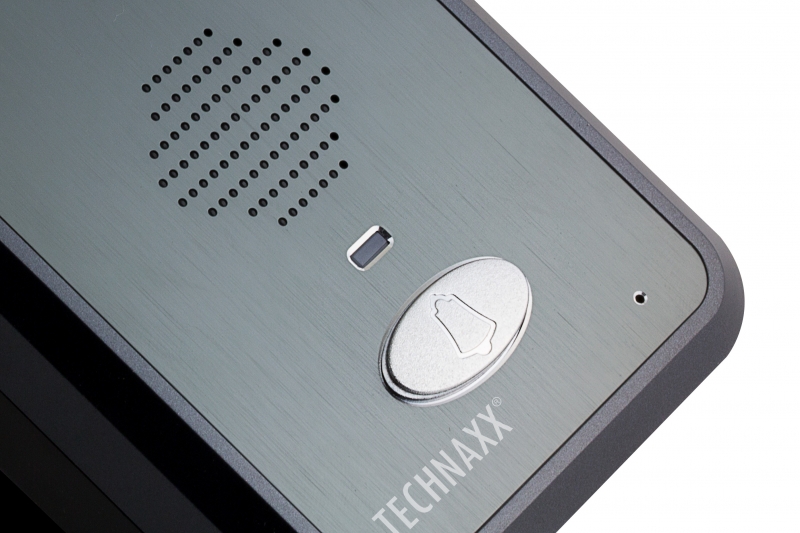

  • Doorbell function and connection with electric door opener possible
  • Videos saved on MicroSD card up to 32GB
  • Easy handling and setting

    Camera & Monitor
  • Transmitting frequency: 2.4GHz
  • Maximum radiated output power: 100mW

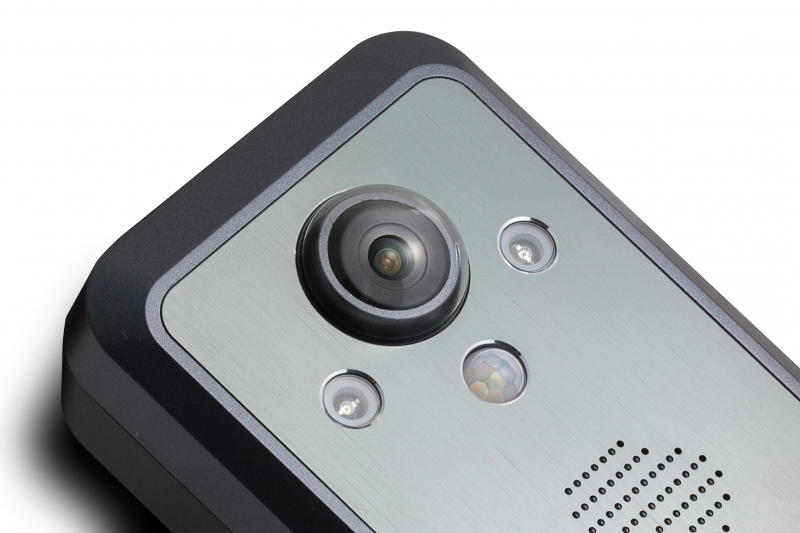

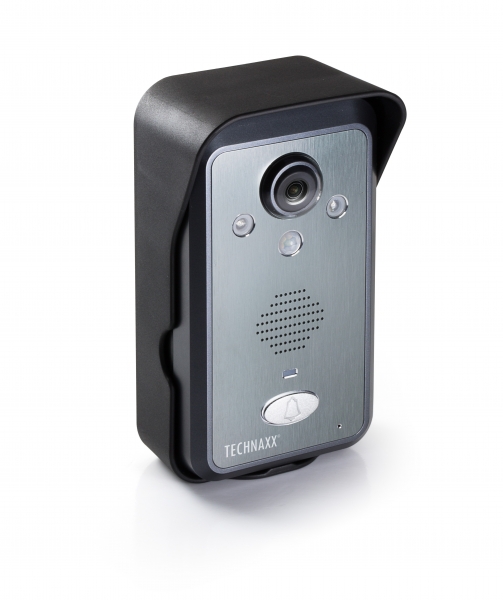

    Technical specifications outdoor camera
  • 3 Mega pixels & 120° wide-angle
  • Replaceable rechargeable (~6.5 hours) lithium ion battery 3400mAh 12.5Wh
  • Playing time ~6 hours continuously, Standby ~60 days
  • Current consumption 400mA & external power supply 9V~16V DC/AC
  • Built-in microphone and speaker
  • Operating temperature –10°C up to +40°C

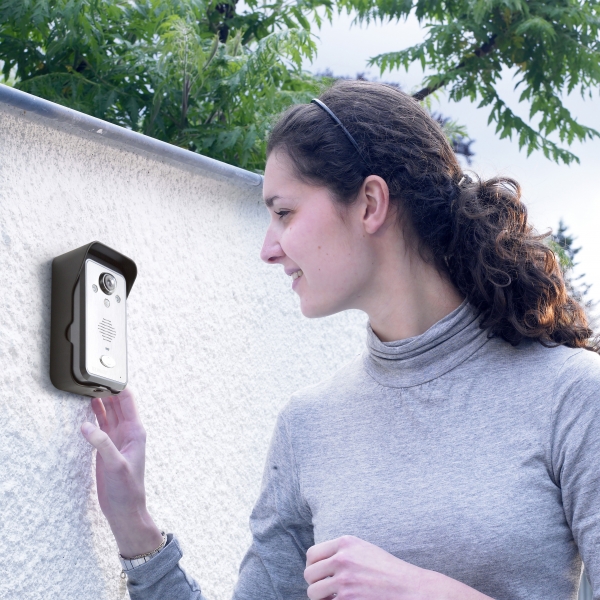

  • Outdoor wall mount (incl. mounting material)
  • Weight / Dimensions: 213g / (L) 13.4 x (W) 7.4 x (H) 3.1cm

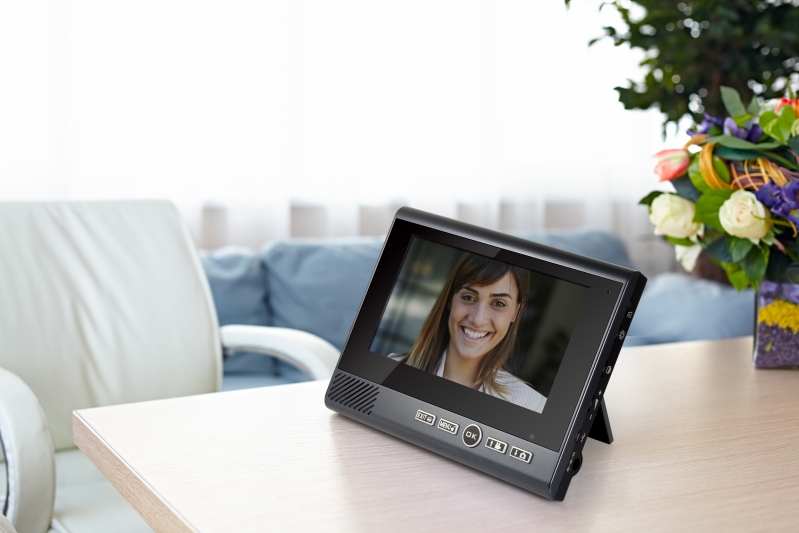

    Technical specifications indoor monitor:
  • 7" TFT LCD indoor monitor with 640x480 video resolution
  • Replaceable rechargeable (~6.5 hours) lithium ion battery 4000mAh 14.8Wh
  • Current consumption 400mA & external power supply DC 9V/2A
  • Wireless communication mode with 2.4GHz
  • 1-way or 2-way intercom function

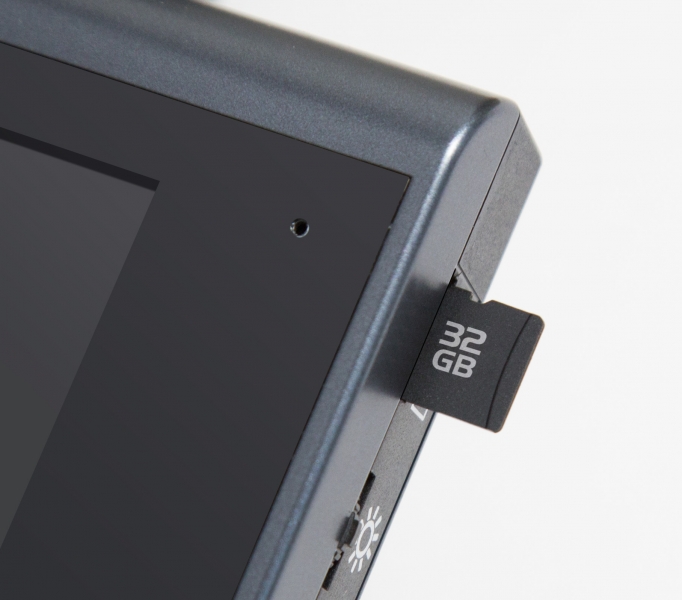

  • Loop recording function on MicroSD card up to 32GB
  • Control buttons on the front for easy operation
  • Control buttons sideways for different adjustments
  • Possible to connect an electrical door opener 6V–12V
  • Built-in microphone and speaker
  • Operating temperature 0°C up to +40°C
  • Stand for plain surfaces

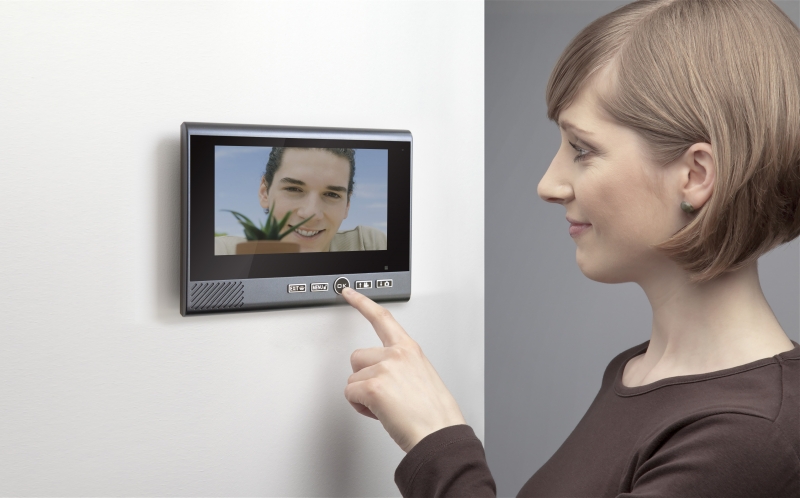

  • Indoor wall mount (incl. mounting material)
  • Weight / Dimensions: 444g / (L) 20.0 x (W) 15.0 x (H) 2.7cm

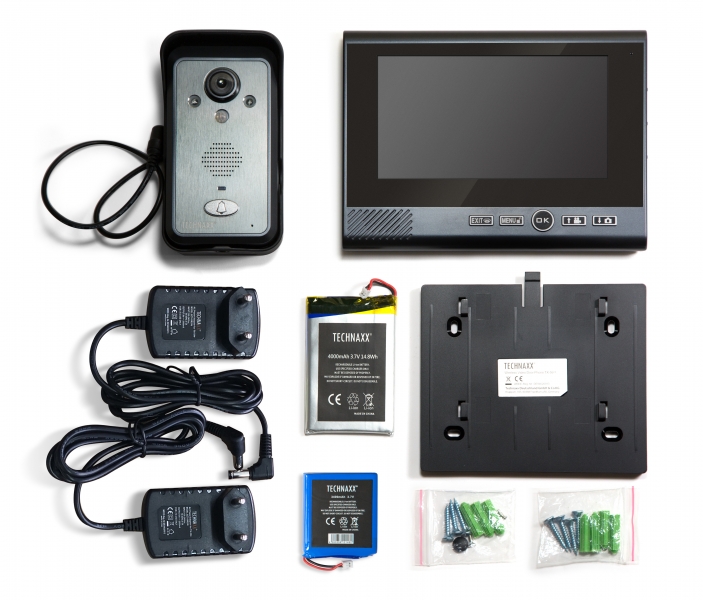

    Package Contents:
  • Outdoor camera (wireless transmission)
  • 7" indoor monitor (wireless reception)
  • 2x DC 9V Charging adapter
  • DC Cable for outdoor camera
  • 2x Lithium ion battery (camera & monitor)
  • 2x Screws M3
  • Waterproof case + 3 screws
  • Wall bracket + 4 screws
  • User Manual

    Replaceable Battery 3400mAh for the camera of the Wireless Video Door Phone TX-59+

    Technical specifications:
  • Replaceable rechargeable lithium ion battery 3400mAh 12.5Wh 3.7V
  • Charging time ~6.5 hours
  • Recording time ~6 hours
  • Standby time ~60 days
  • Weight / Dimensions: 52g / (L) 4.8 x (W) 0.8 x (H) 5.5cm

    Replaceable Battery 4000mAh for the monitor of the Wireless Video Door Phone TX-59+

    Technical specifications:
  • Replaceable rechargeable lithium ion battery 4000mAh 14.8Wh 3.7V
  • Charging time ~9 hours
  • Recording time ~7 hours
  • Standby time ~280 hours (~11 days)
  • Weight / Dimensions: 67g / (L) 4.5 x (W) 3.5 x (H) 0.7cm
