Technaxx Wireless Security Alarm Set TX-104




















Technaxx Wireless Security Alarm Set TX-104
UVP: 99,00 EUR
EAN: 4260358122595
SKU: 4750

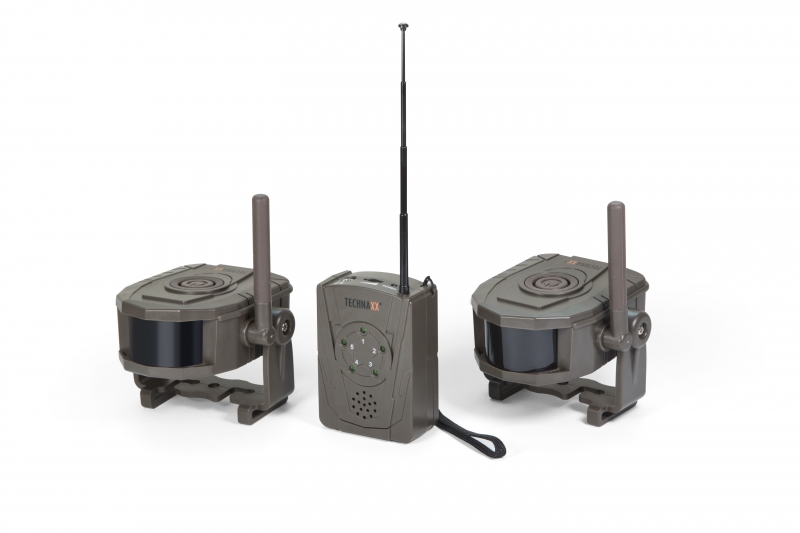

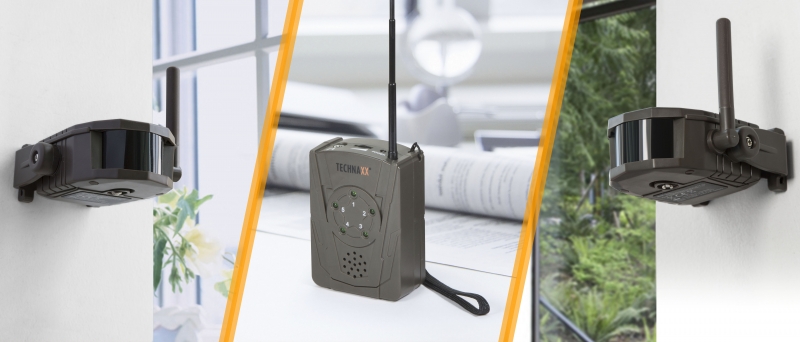

Receiver with 2 sensors for motion detection
Features:
- Wireless transmission range up to 100m between receiver and sensor
- Very short sensor trigger time 0.5 seconds
- Expandable up to 5 sensors with one receiver
- Adjustable sensor motion detection distance up to 12m
- 70° detection angle of sensor
- 3 alarm methods: vibration, sound, LED light
- Sensor protection class IP66 (dust & water proof)
- Receiver with belt buckle

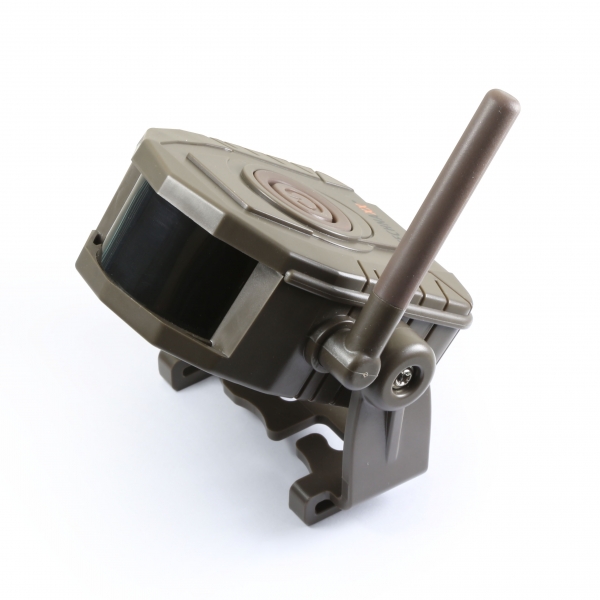

- Mounting buckle 180° rotatable
- Powered by batteries* (*not included)
- Functional & easy handling
Technical specifications: - Sensor power consumption < 2mA / 4.5V
- Sensor PIR distance ~12m, angle 70°, trigger time 0.5 sec.
- Sensor signal strength < 10mW
- Sensor IP66 protection class
- Sensor power supply: 3x AAA batteries* (*not included)
- Sensor battery life ~400 hours (~16 days)
- Sensor standby time ~6 month (if nothing is detected)
- Receiver power consumption < 8mA / 4.5V

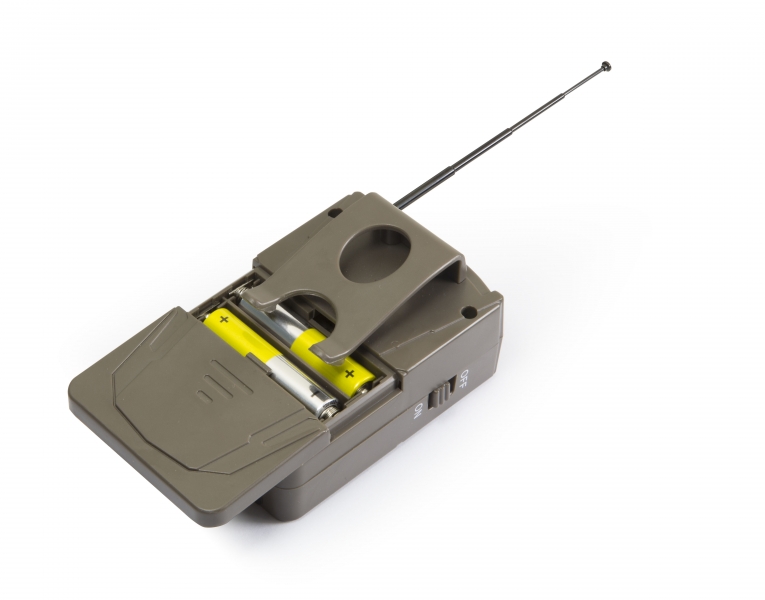

- Receiver power supply: 3x AAA batteries* (*not included)
- Receiver battery life ~100 hours (~4 days)
- Receiver alarm: vibration or sound 15 sec. or LED light
- Transmission frequency: 433MHz wireless
- Working temperature: –20° up to +60°C

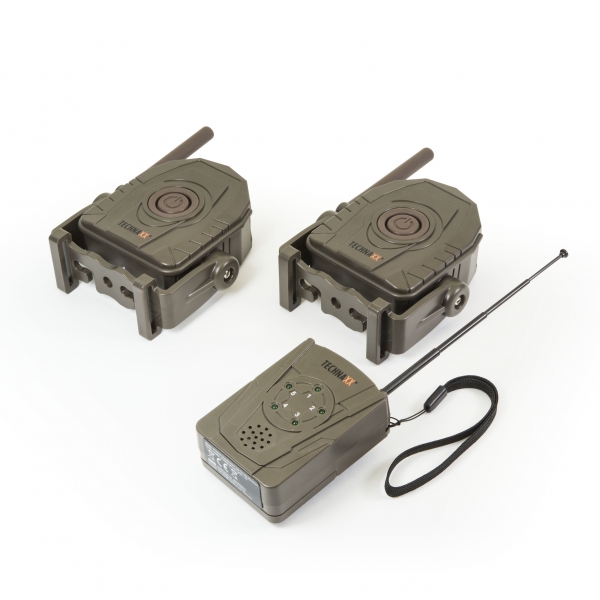

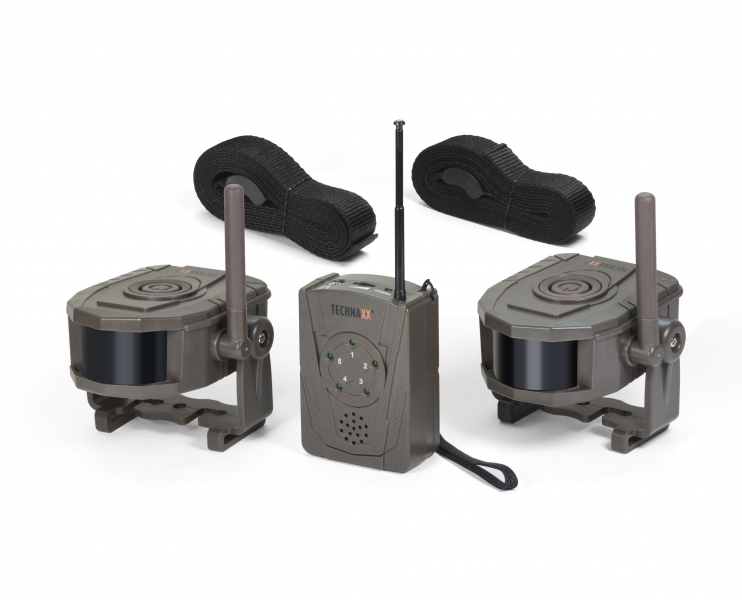

Package contents: - Wireless Security Alarm Set TX-104 (1 receiver & 2 sensors)

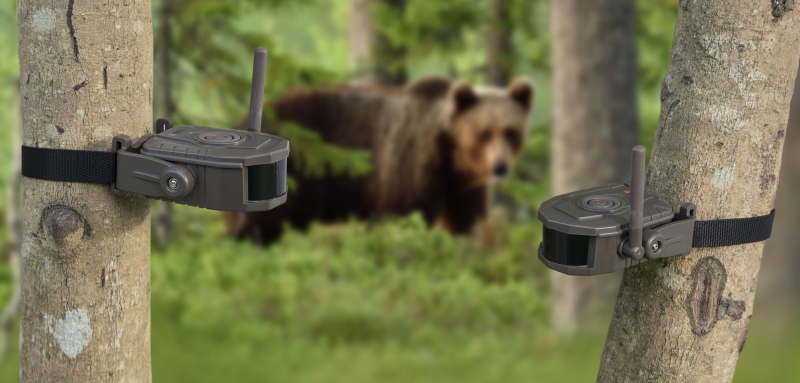

- 2 Mounting belts
- User Manual
Weight and Dimensions: - Weight / Dimensions Sensor: 132g / (L) 14 x (W) 10 x (H) 4cm
- Weight / Dimensions Receiver: 82g / (L) 8 x (W) 5.5 x (H) 4cm
