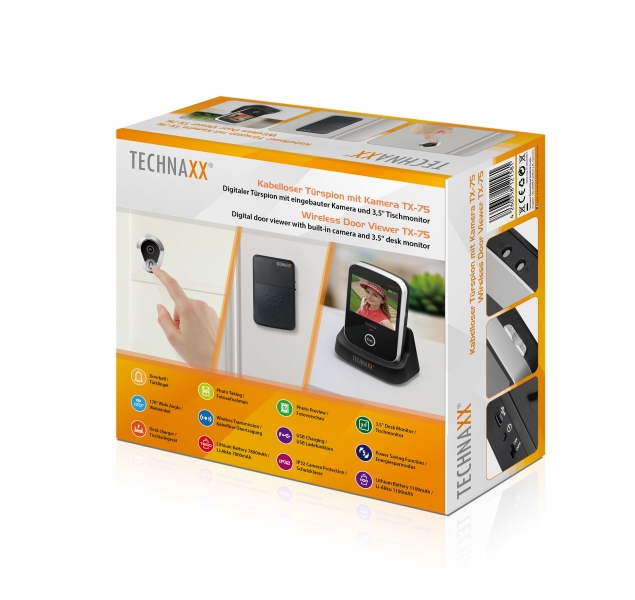

Technaxx Wireless Door Viewer TX-75
Technaxx Wireless Door Viewer TX-75

UVP: 149,00 EUR

EAN: 4260358121581

SKU: 4648

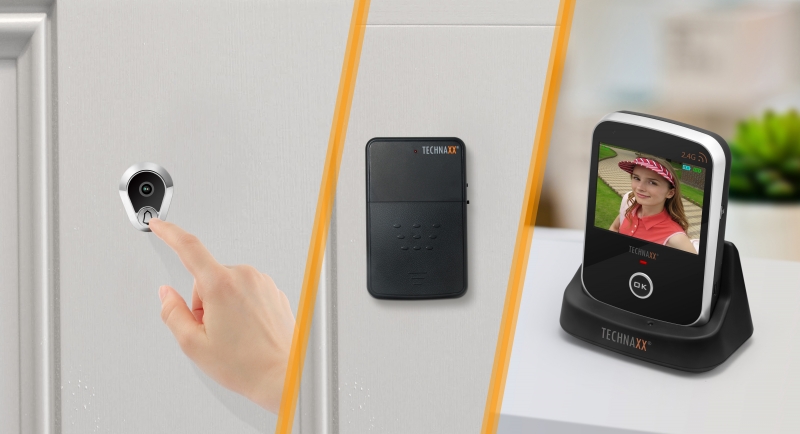

Digital door viewer with built-in camera and 3.5" desk monitor

Features:

  • Doorbell function
  • Photo taking & Photo preview
  • Data backup up to 100 photos (built-in storage)
  • Portable desk monitor with 3.5" screen
  • Camera with 300000 pixel & 170° wide angle view
  • 2.4GHz wireless transmission ~200m open areas
  • Power saving function

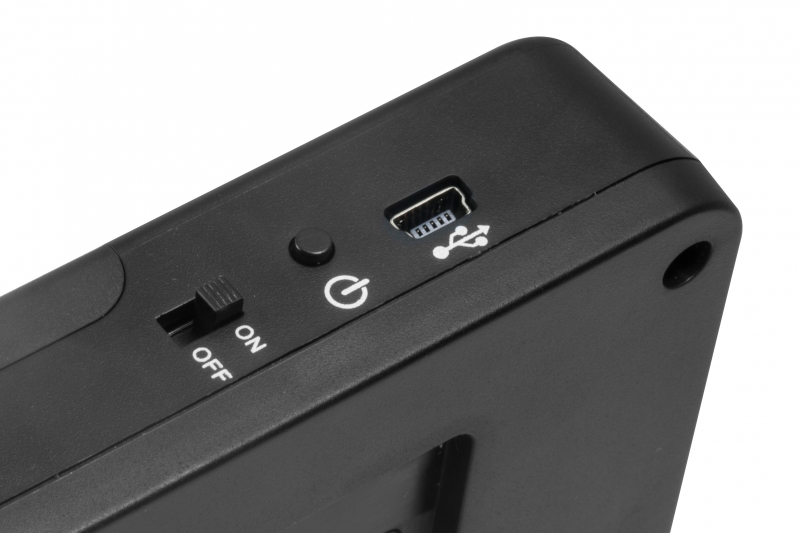

  • USB charging function
  • Resolution of the monitor 320x240
  • IP32 camera protection class (dripping water & <2.5mm impurity)
  • "Do-it-yourself" installation, camera placement in peephole

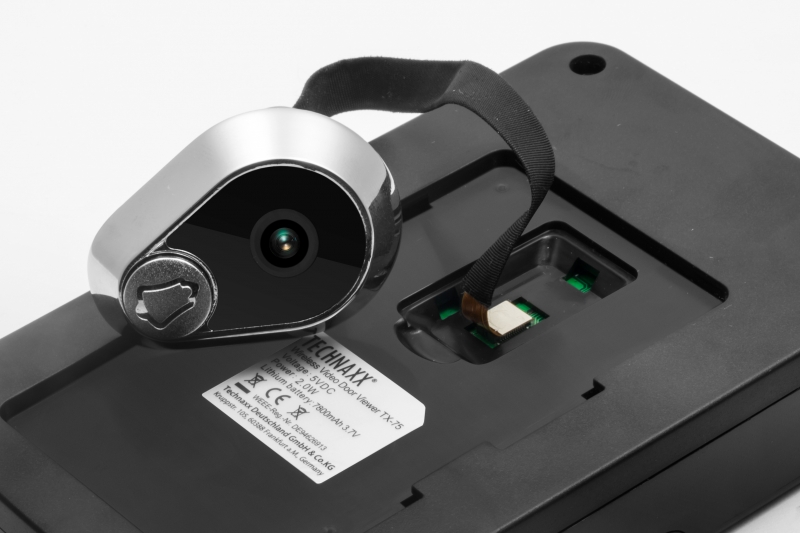

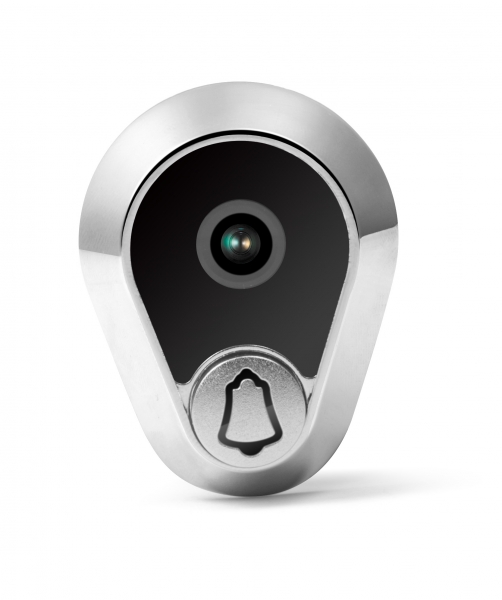

    Technical specifications Outdoor Camera and Emitter:
  • 300000 pixels & 170° wide-angle
  • Replaceable rechargeable lithium battery 7800mAh (type 18650)
  • Charging time ~12 hours
  • Working time ~39 hours continuously
  • Standby time (monitoring mode) ~52 days
  • Standby time (power saving mode) ~1 year [charge the battery min. every 6 month]
  • Current consumption 160mA & power supply DC 5V/1A
  • Operating temperature –10°C up to +50°C
  • Weight / Dimensions: 280g / outline dimensions 3.6 x 0.8cm

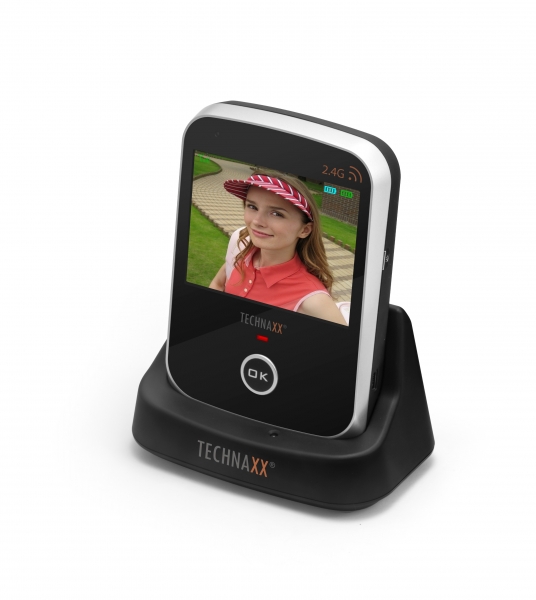

    Technical specifications Desk Monitor (Handset):
  • 3.5" TFT colour LCD screen
  • JPEG picture format
  • 2.4GHz wireless connection mode
  • Wireless transmission ~200m in open areas
  • Replaceable rechargeable lithium battery 1100mAh (type BP-6M)
  • Charging time ~3 hours
  • Working time ~5 hours continuously
  • Standby time ~6 days
  • Desk charger for the monitor
  • Current consumption 200mA & power supply DC 5V/1A
  • Operating temperature 0°C up to +40°C
  • Weight / Dimensions: 110g / outline dimensions 12.6 x 8.4 x 2.0cm

    Package contents:
  • Camera (wireless transmission)

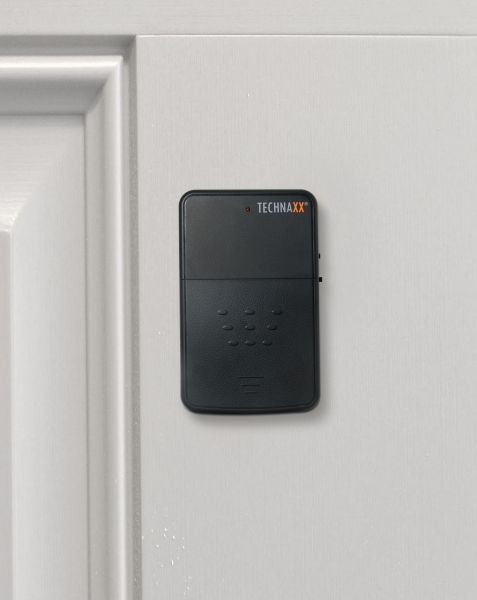

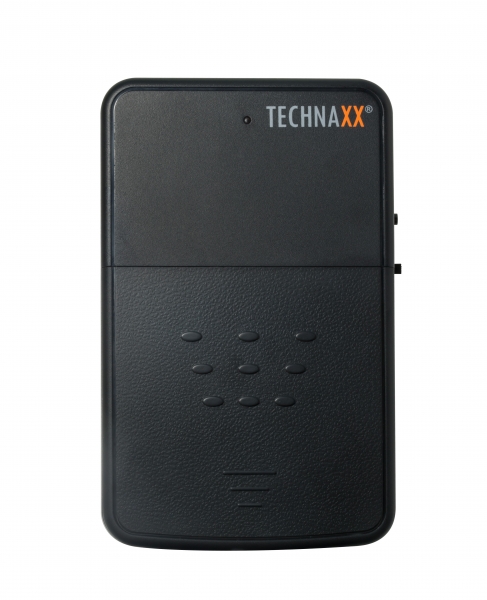

  • Emitter (providing the camera with power)
  • 3.5" desk monitor (wireless reception)
  • Desk charger for the monitor
  • USB cable
  • Power charger DC 5V
  • Lithium 7800mAh battery type 18650
  • Lithium 1100mAh battery type BP-6M
  • Screw M4
  • Steel board
  • Round steel board
  • User Manual

    Sold separately:
  • Replacement Battery for the Monitor 1100mAh (BP-6M): EAN Code 4260358121529, Article No. 4651
  • Replacement Battery for the Emitter 7800mAh (type 18650): EAN Code 4260358121536, Article No. 4652
