Technaxx Premium Security Surveillance Camera Set 18.5 Monitor TX-30
Technaxx Premium Security Surveillance Camera Set 18.5 Monitor TX-30

UVP: 399,00 EUR

EAN: 4260101737649

SKU: 4642

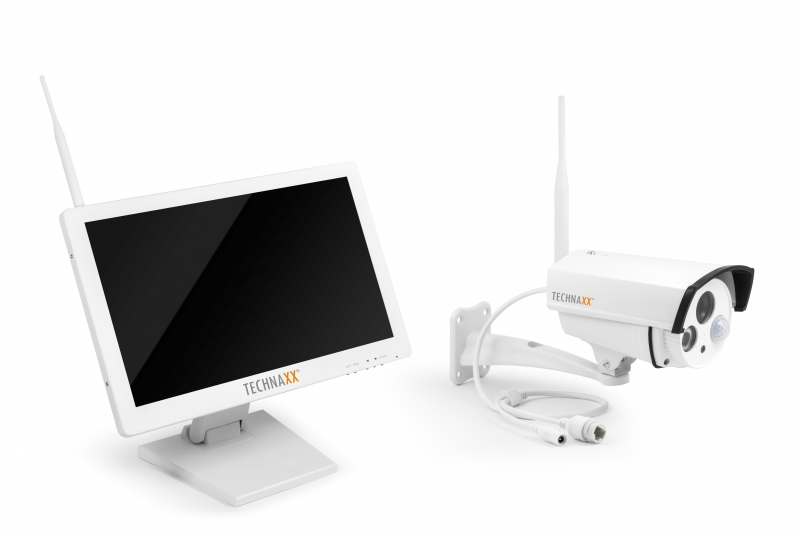

18.5 inch monitor with recording function & HD outdoor camera

Features:

  • Recorder & Receiver & Monitor in one device
  • Wireless transmission with 2.4GHz via Plug & Play
  • HD LCD 18.5" monitor with built-in loudspeaker
  • HD camera video resolution 1280x720 (720P)
  • Built-in camera microphone for audio recording
  • PIR sensor with ~8m distance at day & night
  • Push message via APP when motion is detected
  • Wireless camera connection with up to 8 cameras
  • 8-windows split-screen function with real-time/routine/event surveillance
  • Hard disk storage function & USB backup function
  • Network operation via LAN cable connection
  • Mobile viewing via free iOS & Android APP (Technaxx Security Premium)
  • Easy monitoring via PC (PC Client software)
  • Worldwide PC access (DDNS) [www.technaxxp2p.de]
  • IP66 camera protection class against waterjet & dust

    Technical specifications monitor:
  • Supports Wireless/IP camera video input
  • SATA hard disk connection up to 4TB HDD (3.5")
  • Video capture mode: manual, time, motion, PIR

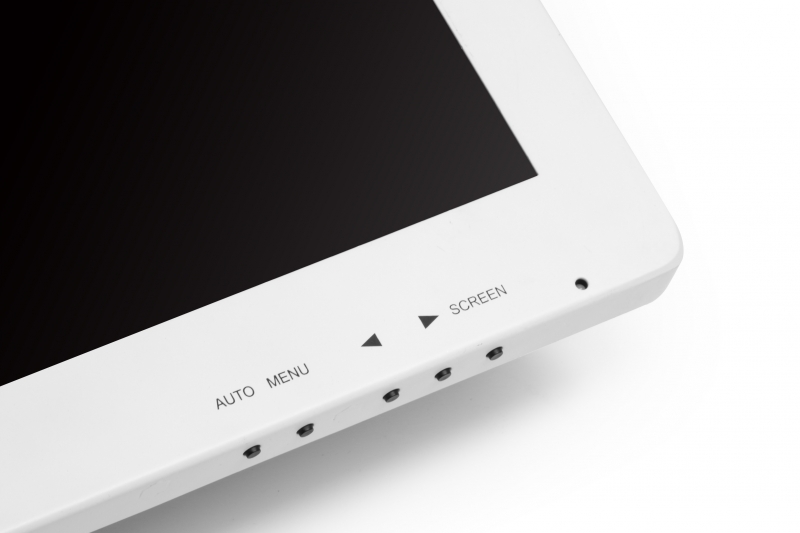

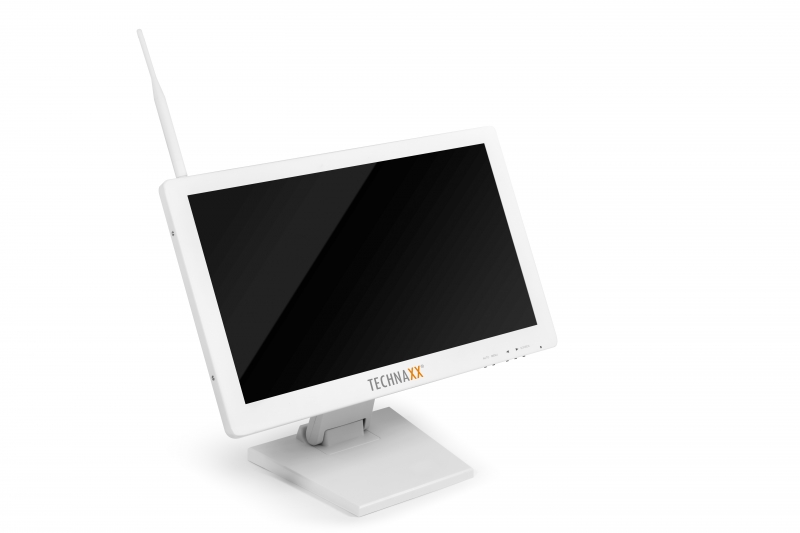

  • HD LCD 18.5" monitor with built-in loudspeaker
  • H.264 dual-stream video compression (main & extra stream)
  • Video resolution D1/720P
  • AV input 8 channels maximum

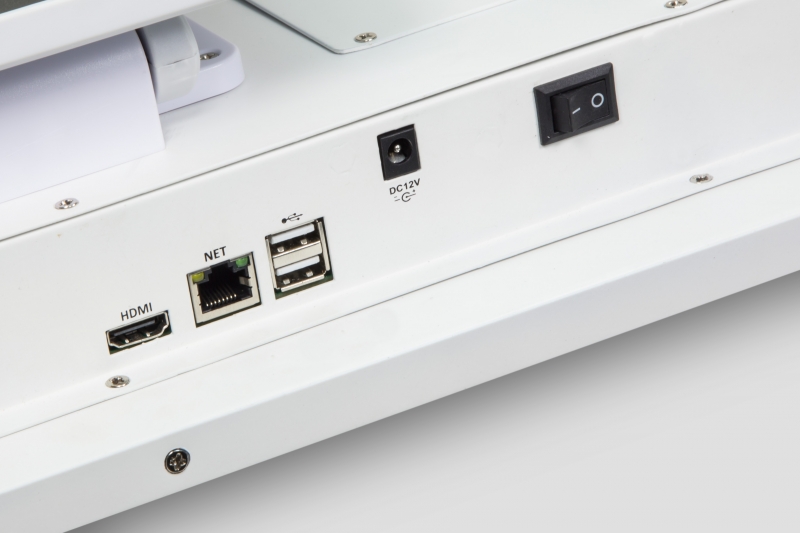

  • AV output: 1 channel HDMI video output
  • 2 USB2.0 ports (backup & mouse)
  • Network interface: 1x RJ45 10Mbit/s / 100Mbit/s, 1x WiFi interface for cameras
  • Automatic connection via DHCP (Dynamic Host Configuration Protocol)
  • Protocol: UPnP, SMTP (only SSL), PPPoE, DHCP, DDNS
  • Power supply: DC 12V/3A
  • Power consumption <=20W (without HDD)
  • Operating conditions: –10°C~+55°C, humidity 10%~90% RH
  • Mounting possibilities: Stand & Wall bracket

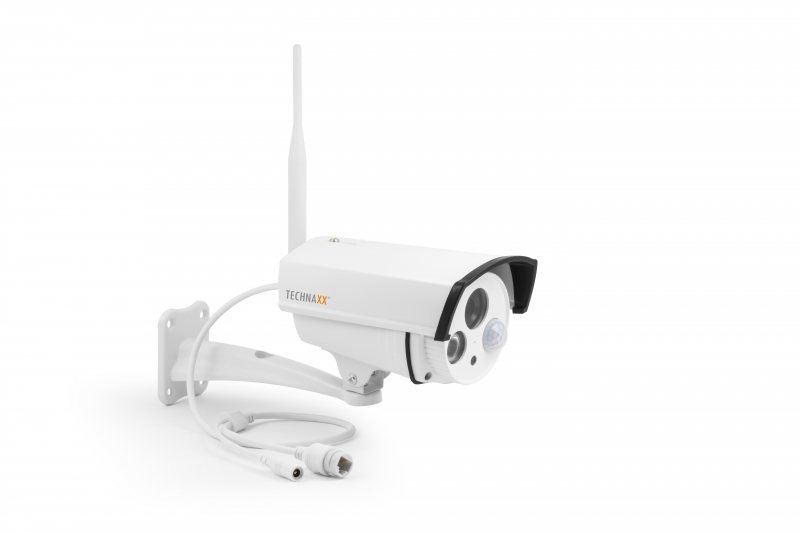

    Technical specifications camera:
  • Image sensor 1/4" CMOS with 1 megapixel
  • Video resolution HD 1280x720 (720P)
  • WiFi transmission up to ~50m open areas
  • Camera repeater function to enlarge WiFi distance up to ~150m
  • Motion detection ~10m (day/night)

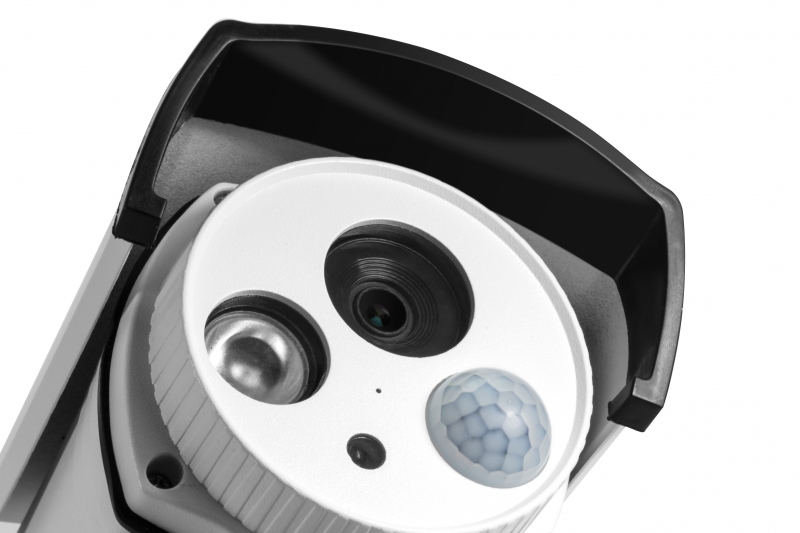

  • PIR sensor ~8m (day/night); 120° horizontal & 60° vertical
  • 1 infra red Array LED for night vision mode (~15m) & IR-Cut
  • Lens: f=4mm; shutter 1/25s to 1/25000s; fixed focus
  • Viewing angle 57.4° horizontal & 42.8° vertical
  • Min. illumination: Colour 0.1 Lux, B/W 0.01 Lux, Auto, Auto 3D-DNR
  • Protocol: RJ45, WiFi 802.11b/g/n
  • Power supply: DC 12V/1A
  • Power consumption <=6W
  • IP66 protection class (waterjet & dust proof)
  • Operating conditions: –10°C~+50°C, humidity 30%~80% RH

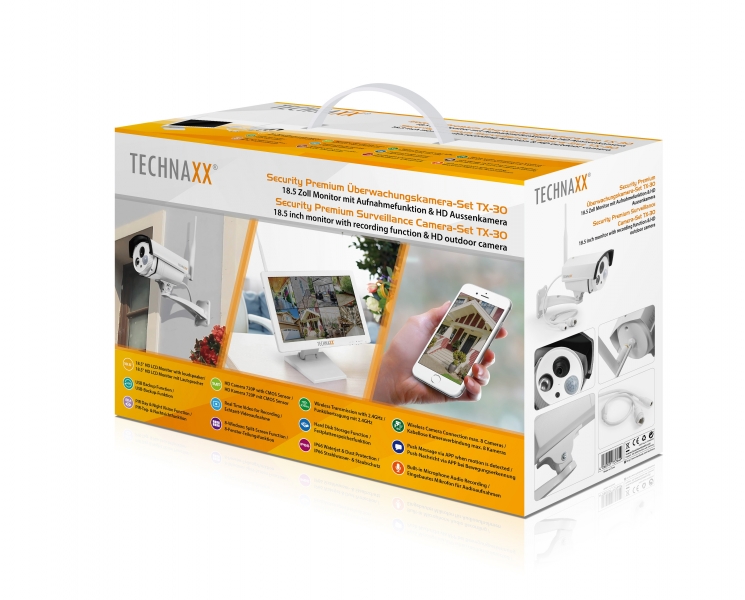

    Package contents:
  • 1 Monitor with Stand, AC/DC Adapter 12V/3A, Wall bracket & screws & dowels, HDD bracket & screws, Antenna
  • 1 Outdoor Camera with AC/DC Adapter 12V/1A, Wall bracket & screws & dowels, Antenna, Waterproof end cap
  • General: USB Mouse, Network Cable (2m), CD, User Manual, [*HDD not included]

    Weight and Dimensions:
  • Weight / Dimensions Monitor: 5.5kg (without HDD* & stand) / (L) 46.0 x (W) 5.8 x (H) 28.8cm [*HDD not included]
  • Weight / Dimensions Camera: 550g / (L) 15.0 x (W) 9.7 x (H) 8.7cm

    Additional Camera for Security Premium Surveillance Camera Set TX-29 &TX-30
    and AC/DC adapter 12V/1A, wall bracket & screws & dowels, antenna, waterproof end cap, EAN Code: 4260101737656, Article-No. 4664
