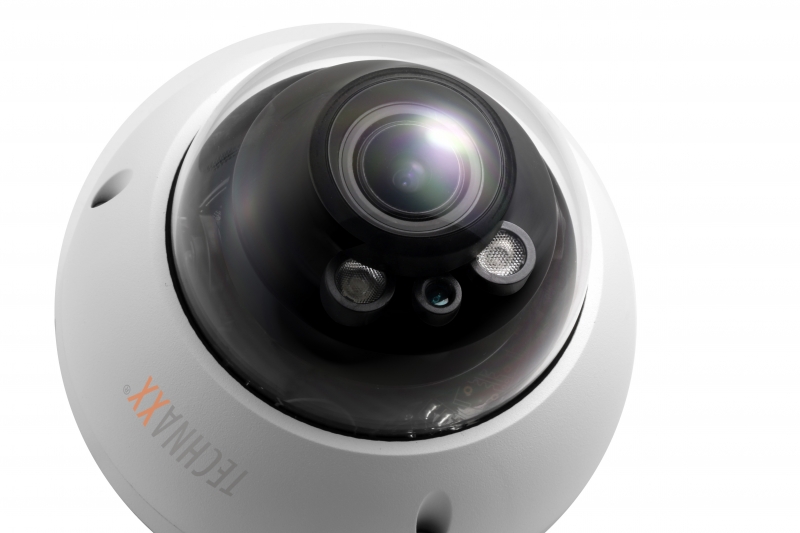

Technaxx Dome Camera for Kit PRO TX-50 and TX-51
Technaxx Dome Camera for Kit PRO TX-50 and TX-51

UVP: 149,00 EUR

EAN: 4260358121345

SKU: 4567

Features Dome Camera:

  • High-performance CMOS image sensor with 2.4 Mega pixel
  • Supports HDCVI HD video output
  • Transmission distance up to 300m via 75-3 coaxial cable without data loss
  • High speed, long distance real-time transmission
  • Automatic ICR switch to realize surveillance both in the daytime and at night
  • Automatically: exposure, white balance, electronic shutter, gain function
  • Restore clear and vivid video
  • Supports IR function with IR LED distance max. 15m
  • Protection class IP66 (dust & waterproof) & IK10 (shockproof)

    Technical specifications Dome Camera:
  • Video resolution: 1980 × 1225 @ 30 fps (PAL)
  • Video frame rate: 25/30/50/60 fps @ 720P & 25/30 fps @ 1080p
  • Min. illumination: 0.05 Lux @ F1.2 (AGC ON), 0 Lux with IR switched on
  • Electronic shutter: 1/3 sec. ~ 1/100000 sec. (PAL)
  • 1-channel BNC HDCVI high definition video output & CVBS standard definition video output
  • BLC (BackLight Control): automatically
  • Noise reduction of 2D/3D
  • Colour or Black/White: selectable
  • IR light only is active for video recordings in night mode
  • Horizontal angle of view: 105.5° ~ 32.9°
  • Focal length: 2.7 ~ 12.0mm / automatic zoom
  • Fixed aperture for the brightness
  • Working temperature: – 30°C ~ 60°C
  • Power: DC 12V ± 10%
  • Power consumption: 8.6W max. (Input 12V/0.72A) IR 15m max.

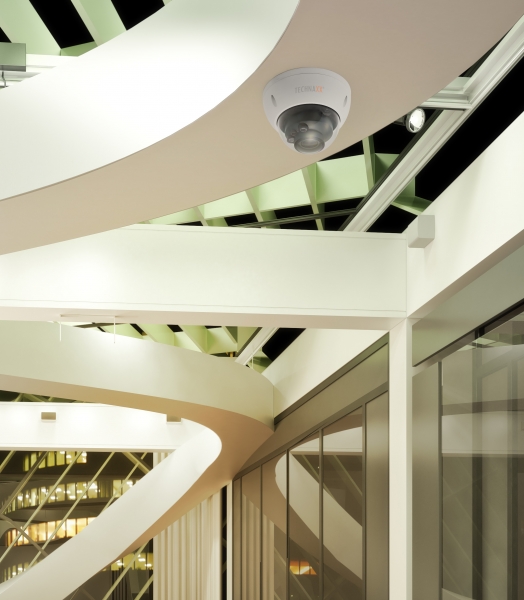

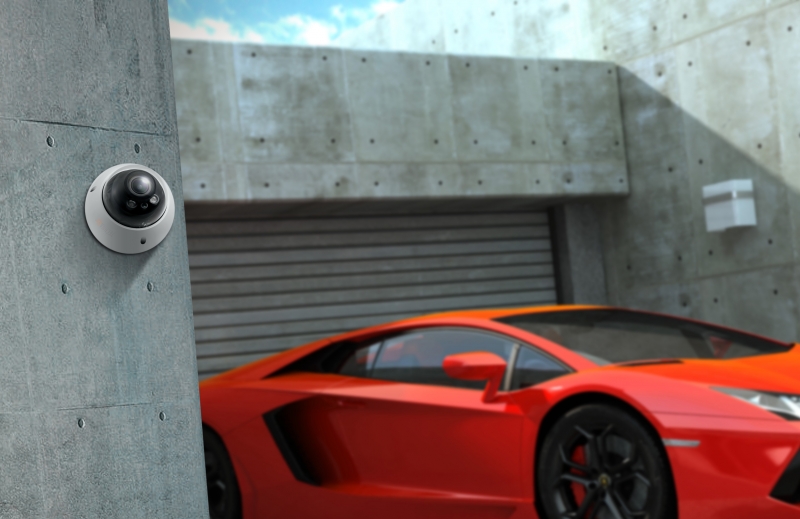

  • Indoor and outdoor installation: wall mount / ceiling mount
  • Weight / Dimensions: 450g / Φ 12.2 × (H) 8.9cm

    Package contents:
  • Dome Camera for Midi Security Kit PRO FullHD 1080P TX-51
  • 3x screws and 3x dowels, 1x BNC 18.3m video cable, User Manual



There are currently no FAQs for this article
