Mini Surveillance Camera Set TX-389 with Touchscreen

Features:

• 4.3” (10.92cm) touch screen monitor (640x360 pixel)
• 4 channel live view, 1 channel playback (at same time)
• Max. 4 cameras with 4.3"monitor connected (one camera included in the set)
• FullHD video resolution 2304 x 1296 with max. 20fps
• Motion detection up to ~5-8m with automatically recording
• Wide viewing angle 86° horizontal & 46° vertical
• Rotation (355° horizontal & 90° vertical)
• 6x IR LED red glow (850nm) up to ~15m for B/W night vision
• 6x white LED (4W, 200lm, 6000K°) ~15m for colored vision at night
• Supports WiFi 2.4+5.8GHz IEEE802.11 b/g/n/ac/ax
• WiFi transmission distance up to max. 15m (open field)
• Brilliant 1/2.9" CMOS color sensor (3MP)
• Camera suitable for outdoor use, waterproof and dustproof IP65
• Free “Security Premium” APP for worldwide access [iOS & Android]
• Download of recordings via APP on to your Smartphone
• Alarm function (push message) on your Smartphone
• Built-in microphone & speaker for 2-way communication
• Supports MicroSD(HC/XC) cards up to 256GB* (Class 10) for local recording (*not included)
• H.264/H.265 video compression (for space-saving recordings of high quality)

  Technical specifications:

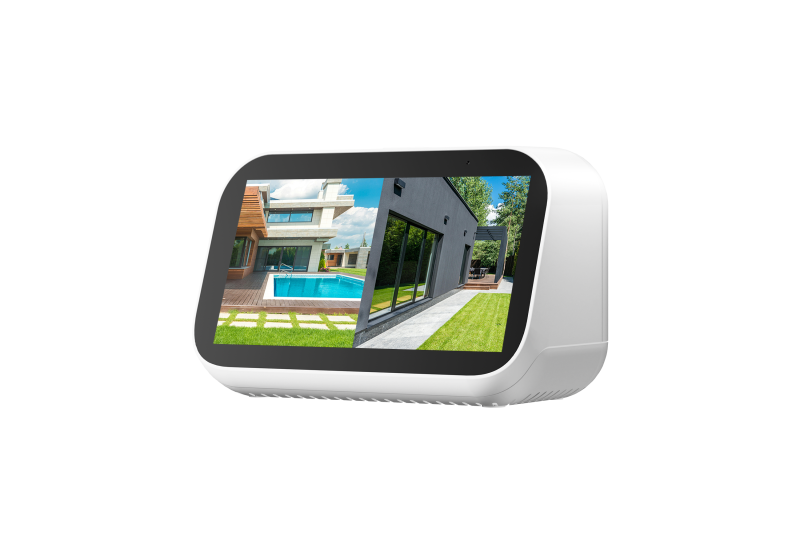

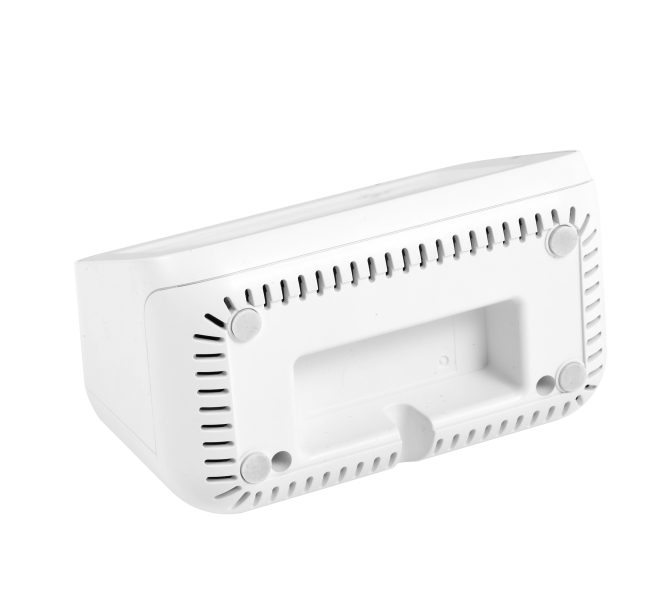

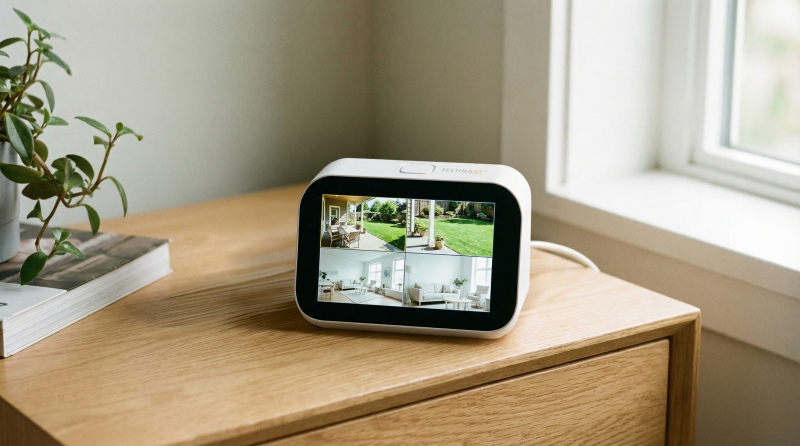

  Monitor:
• Display size: 4.39” (10.92cm); Touch screen, 640x360 pixel
• Channel: Max. 4
• Video compression: H.264/H.265
• Speaker & microphone: Built in
• Video file format: .MP4
• Network: 2.4 & 5.8GHz 802.11b/g/n/ac/ax
• WiFi security: WPA/WPA2, WPA-PSK/WPA2-PSK
• WiFi distance: Max. 15m (open field)
• Radiated output power max.: 100mW
• LAN port: RJ-45 10M/100M
• Storage: Supports MicroSD(HC/XC) cards up to 256GB (FAT32/ exFAT) (class10)
• File size: Night; B/W or Day; color: 13MB/min (32GB = 1.5 days continuous recording)
• Power consumption: Day ≤ 3W / Night ≤ 8W
• Power adapter: DC 12V / 1A, hollow connector 5.5 x 2.1mm
• Cable length: 2m
• Working temperature: -10 - 50°C
• Material: ABS Plastic

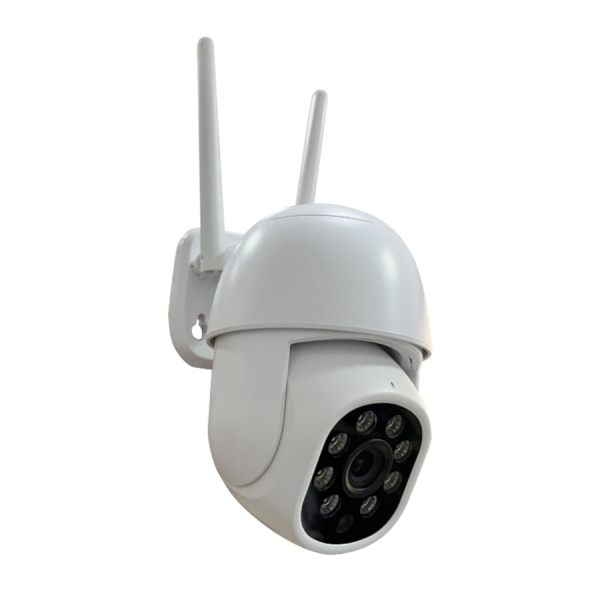

  Camera:
• Image sensor: 3MP 1/2.9" CMOS
• Lens: f=4mm, fixed focus
• Shutter: 1/50(1/60)s ~1/100,000 s
• Viewing angle: Horizontal: 86°/ vertical: 46°
• Rotation angle: Horizontal: 0-355°; Vertical: 0-90°
• Minimum illumination: Color mode: 0.05 Lux; Night mode: 0 Lux with 6x IR LED or 6x white LED
• IR distance: ~15m; IR 850nm, White 4W, 200lm, 6000K
• Video resolution: HD (2304x1296), SD (640x360)
• Video frame rate: Up to 20fps
• Speaker & microphone: Built in
• Motion detection: Distance: ~5-8m (open space)
• Power consumption: Day ≤ 4W / Night ≤ 8W
• Power adapter: DC 12V / 1A, hollow connector 5.5 x 2.1mm
• Cable length: 2m
• Protection class: IP65
• Working condition: -10 - 45°C; RH Less than 95% (No condensation)
• Material: ABS Plastic

  System requirements:
• App “Security Premium”: iOS 15.0 or above; Android 13.0 or above / EN, DE, FR, ES, IT, NL, SE, DK, NO, FI, CZ, PO (12-2025)
• Compatibility: TX-145, TX-146, TX-192, TX-244, TX-390 cameras

  Package contents:
• 1x Monitor
• 1x Camera
• 2x Power Adapter (2m)
• 3x Screws & Dowels
• User Manual (short)

  Weight and Dimensions:
• Monitor Weight / Dimension: 199g / (L) 12.2 x (W) 7.0 x (H) 8.0cm
• Camera Weight / Dimension: 286g / (L without antenna) 12.5 x (W) 9.3 x (H) 15.7cm
