Wi-Fi Peephole Camera TX-366

Features:

• 3MP video quality, live stream and watch recordings
• 4.3” (10.92cm) HD LCD display (480P)
• Support 1 & 2-way audio between phone and camera
• Built-in Battery 5000mAh; 600 rings = up to 2 months
• Easy charged by Type C
• Motion detecting distance up to 3m
• Wide viewing angle, see more of every moment
• WiFi wireless connection 2.4GHz
• Support local storage by MicroSD card up to 32GB
• Free APP provided, support remote viewing on iOS or Android

  Technical specifications:
• Image sensor: 3MP 1/3" Color CMOS
• Lens: f=2.5mm, fixed focus
• Viewing angle: FOV:142° / 121°(H)
• Day & Night: Auto. IR-cut filter
• Minimum illumination: 0.01 Lux (with infrared led on)
• IR distance: 1-3m / 1pcs 940nm IR LED
• Video resolution: 2304x1296 pixel
• Video frame rate: 20fps
• Display size: 4.3” (10.92cm); 480x272 pixel
• Video compression: H.265
• Microphone & Speaker: Built-in
• Network: 2.4 GHz 802.11b/g/n
• WiFi security: WEP / WPA / WPA2
• WiFi distance: Max. 15m (open field)
• Radiated output power max.: 100mW
• Motion detection distance: 1-3m (open space)
• PIR Motion Detect: Yes (If PIR on, only 1200 trigger with full battery!!!)
• Supports MicroSD (HC/XC) cards up to 32GB (FAT32) (class10)
• Built-in, rechargeable Li-Ion 3.7V, 5000mAh; 600 rings; with 10 triggers per day, the battery lasts up to 2 months
• Power consumption: Working mode: 380mA (IR on); Standby mode: 200µA
• Input power: DC 5V / 1A, USB-C
• Length USB-C cable: 3m
• Length data cable: 145mm

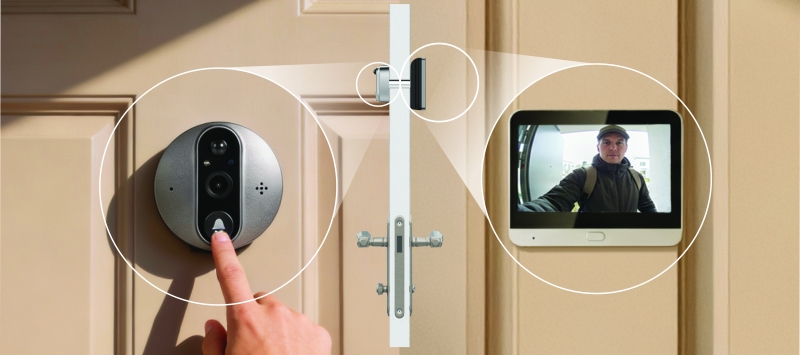

• Door thickness: Min. 40mm; max. 115mm
• Weatherproof: No
• Working condition: -20 - 55°C; RH Less than 85% (No condensation)
• User accounts: Total 4 Users (Admin user and normal user)
• Material: ABS Plastic, Aluminum Alloy

  System requirements:
• App “Tuya Smart”: iOS 15.0 or above; Android 13.0 or above / EN, DE, FR, ES, IT, NL, SE, DK, NO, FI, CZ, PO (12-2025)

  Package contents:

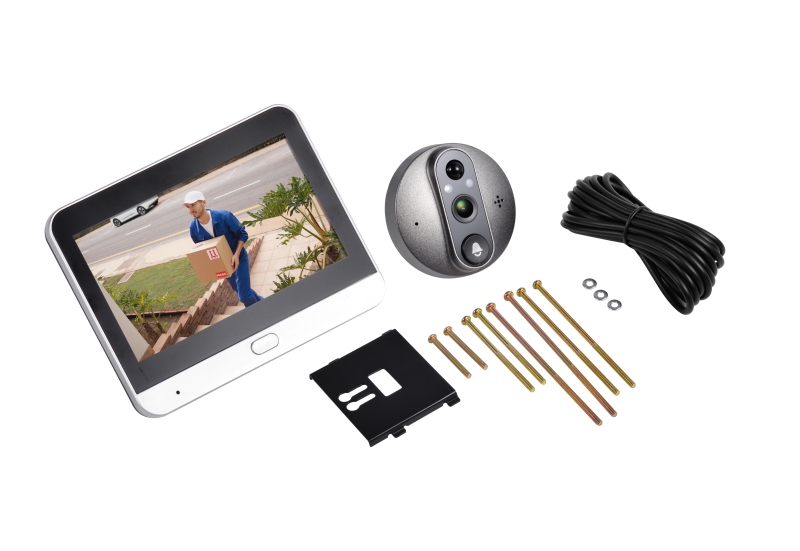

• Package contents: Wi-Fi Peephole Camera TX-366, USB-C cable (3m), Screws, Mounting plate, User manual

  Weight and Dimensions:
• Weight / Dimension Display: 207g / (H) 11.2 x (L) 8.9 x (L) 2.5cm
• Weight / Dimension Camera: 115g / (L) 5.3 x (Ø) 6.5cm
